Contribution of transient and sustained calcium influx, and sensitization to depolarization-induced contractions of the intact mouse aorta



Electrophysiological studies of L-type Ca2+ channels in isolated vascular smooth muscle cells revealed that depolarization of these cells evoked a transient and a time-independent Ca2+ current. The sustained, non-inactivating current occurred at voltages where voltage-dependent activation and inactivation overlapped (voltage window) and its contribution to basal tone or active tension in larger multicellular blood vessel preparations is unknown at present. This study investigated whether window Ca2+ influx affects isometric contraction of multicellular C57Bl6 mouse aortic segments.


Intracellular Ca2+ (Cai2+, Fura-2), membrane potential and isometric force were measured in aortic segments, which were clamped at fixed membrane potentials by increasing extracellular K+ concentrations. K+ above 20 mM evoked biphasic contractions, which were not affected by inhibition of IP3- or Ca2+ induced Ca2+ release with 2-aminoethoxydiphenyl borate or ryanodine, respectively, ruling out the contribution of intracellular Ca2+ release. The fast force component paralleled Cai2+ increase, but the slow contraction coincided with Cai2+ decrease. In the absence of extracellular Ca2+, basal tension and Cai2+ declined, and depolarization failed to evoke Cai2+ signals or contraction. Subsequent re-introduction of external Ca2+ elicited only slow contractions, which were now matched by Cai2+ increase. After Cai2+ attained steady-state, isometric force kept increasing due to Ca2+- sensitization of the contractile elements. The slow force responses displayed a bell-shaped voltage-dependence, were suppressed by hyperpolarization with levcromakalim, and enhanced by an agonist of L-type Ca2+ channels (BAY K8644).


The isometric response of mouse aortic segments to depolarization consists of a fast, transient contraction paralleled by a transient Ca2+ influx via Ca2+ channels which completely inactivate. Ca2+ channels, which did not completely inactivate during the depolarization, initiated a second, sustained phase of contraction, which was matched by a sustained non-inactivating window Ca2+ influx. Together with sensitization, this window L-type Ca2+ influx is a major determinant of basal and active tension of mouse aortic smooth muscle.


Transcripts and protein expression of the Ca2+ channel gene are found widely in the cardiovascular system, where the channels play a dominant role in blood pressure regulation[15]. This regulation not only occurs via modulation of peripheral resistance, but also via determination of the arterial compliance, especially in old age (systolic) hypertension[68]. It has been shown that L-type Ca2+ channel blockers increase vascular compliance of large elastic vessels. As such, they may also be of importance for the pathogenesis and prognosis of cardiovascular complications such as atherosclerosis, left ventricular hypertrophy and heart failure[814]. Vascular reactivity via L-type Ca2+ influx is often studied by increasing the extracellular K+ and depolarizing the cells membrane potential (Vm). High K+ induces biphasic contractions in rabbit arteries[15], rat basilar arterial rings[16] and mouse aorta[17], whereby the tonic rise in force is actually accompanied by a decline of intracellular Ca2+. This is often attributed to Ca2+-sensitization, whereby suppression of myosin light chain phosphatase activity raises contractile force independently of further increases or even decrease in intracellular Ca2+[15, 1821]. In those studies, however, relationships between force and continuous background Ca2 influx via non-inactivating L-type Ca2+ channels were not explored.

Indeed, (electro)physiological characteristics of L-type Ca2+ channels, which have been studied extensively in isolated cardiomyocytes and vascular smooth muscle cells (VSMCs), are such that voltage-dependent activation and inactivation curves show substantial overlap between −40 and −15 mV revealing a time-independent, but voltage-dependent Ca2+ influx (window current) in isolated cells[2226]. Although pharmacological evidence suggested that this window may at least serve as a background Ca2+ influx pathway responsible for myogenic tone of small arteries, coronary arteries and microvascular resistance vessels[2729], window Ca2+ currents and related window intracellular Ca2+ signals have only been determined in voltage-clamped isolated SMCs and not in multicellular vascular tissue[24]. The present study used aortic segments of C57Bl6 mice to investigate relationships between VSMC Ca2+ mobilization and isometric contraction with focus on the L-type Ca2+ channel window. Since electrophysiological voltage-clamp of intact aorta segments was impossible, we decided to clamp the membrane potential at fixed potentials by increasing external K+ concentration. By modulating influx of Ca2+ before and during depolarization, we show that not only basal tension, but also the tonic contractile component of C57Bl6 mouse aortic VSMCs depends on the window L-type Ca2+ influx and subsequent Ca2+ sensitization mechanisms. These observations may have important consequences for the effects of nitric oxide (NO) on L-type Ca2+ influx. Recently, we showed that the relaxing efficacy of NO in mouse aorta was dependent on the contractile agonist, and more specifically, decreased when the contraction was mainly elicited via L-type Ca2+ influx as with elevated extracellular K+, but increased when Ca2+ influx was partially inhibited with L-type Ca2+ channel blockers[30].


Contraction at depolarized potentials

Membrane potentials (Vm) in intact mouse aortic VSMCs were K+-dependent and depolarised from −60 mV at 5.9 mM K+ to −30 mV at 50 mM K+ (seeAdditional file 1). Hence, elevation of extracellular K+ is a good method to clamp multicellular aortic segments from resting potentials at 5.9 mM K+ to depolarized potentials. Two K+ clamp protocols, as shown in Figure1, were used; they differed in the relative number of L-type Ca2+ channels that can be activated with the subsequent depolarization. In the repetitive protocol (Figure1 A-C), which mimics the depolarizing voltage steps in voltage-clamp experiments of single VSMCs, segments at 5.9 mM K+ were repetitively exposed to elevated K+ followed by return to 5.9 mM K+. In this protocol, the number of channels that can be activated by the depolarization step is always the same at the start of the depolarization. In the cumulative protocol (Figure1 D-F), which mimics the variable holding potentials in voltage-clamp experiments in single VSMCs, the segments were depolarized to the subsequent higher K+ concentration without return to 5.9 mM K+. Therefore, with this protocol the relative number of Ca2+ channels that can be activated with the subsequent depolarization decreases with higher K+.

Figure 1

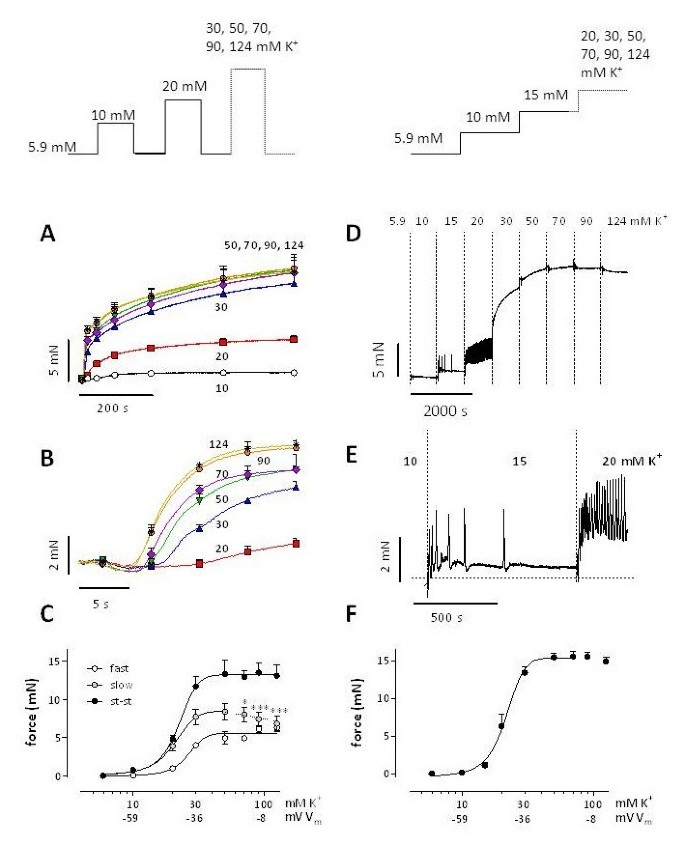

Isometric contractions by elevation of external K+in mouse aorta. K+ was elevated from 5.9 mM to 10, 20, 30, 50, 70, 90 or 124 mM K+ according to the protocols shown in the top panels. For the repetitive protocol (A-C), traces, shown on condensed (A) and expanded (B) time scales, were analyzed with a bi-exponential function revealing [K+]-force curves for the fast, slow and steady-state (st-st) force components (C). For the cumulative protocol (D-F), D shows a representative example of isometric force elicited by gradual elevations of extracellular K+. E displays the 5.9 to 10, 10 to 15 and 15 to 20 mM K+ depolarizations on an expanded time scale. In F “steady-state” force at each step was plotted in function of [K+]. Results show mean ± s.e.m, n = 4 (A-C) or n = 5 (F). *, ***: P<0.05, 0.001 decrease of slow component amplitude versus maximum at 50 mM K+. The estimated values of Vm at 10, 30 and 100 mM [K+] are indicated. These values are respectively −59, -36 and −8 mV (seeAdditional file 1).

Isometric force by the repetitive protocol followed a bi-exponential time course, except at 10 mM K+ (Figure1A). Amplitude (Figure1B) and velocity of the fast component increased with the K+ concentration (time constant 27.1 ± 6.0 s at 20 mM K+, 3.8 ± 0.7 s at 124 mM K+, P<0.001). The amplitude of the slow component showed a maximum around 50 mM K+, but then significantly decreased at 90 and 124 mM K+ (Figure1C). Remarkably, its time constant was independent of external K+ (258 ± 34 s at 20 mM K+ and 253 ± 27 s at 124 mM K+). [K+]-force relationships (Figure1C) revealed Emax-values of 6.1 ± 0.5, 9.4 ± 1.3 and 14.4 ± 1.6 mN for fast, slow and steady-state force. EC50 values were respectively 23.5 ± 1.2, 22.2 ± 0.3 and 22.0 ± 0.3 mM K+ and were not significantly different.

In the cumulative protocol, two force signals were seen at 15 and 20 mM K+: on top of a tonic rise upon depolarization, transient force spikes were observed (Figure1D and E). These spikes faded away as time progressed (15 mM K+), and showed increased frequency, but similar amplitudes at 20 mM K+. At 30 and 50 mM K+ these spikes disappeared, but force developed with a fast and slow component. Above 50 mM K+ only a small increase (50–70 mM K+) or even a decrease (90–124 mM K+) of force was observed (Figure1D). Emax (15.5 ± 0.6 mN, Figure1F) and EC50 (21.8 ± 1.2 mM K+) were not significantly different from the steady state values measured with repetitive depolarization (vide supra).

Neurotransmitter release from perivascular nerves did not contribute to the biexponential nature of high K+ contractions or to the K+-dose–response relationships in aortic segments (seeAdditional file 1). There was also no evidence of involvement of sarcoplasmic reticulum (SR) Ca2+ store Ca2+ release. Although inhibition of Ca2+-induced Ca2+ release with 15 μM ryanodine raised basal tension (Figure2A), and inhibited the transient caffeine-induced contraction by more than 50% (Figure2B), 50 mM K+-induced contractions were not affected (Figure2C). Similar observations were made for inositoltriphosphate (IP3)-mediated Ca2+ release. Contractions by 2 μM phenylephrine (PE) in the absence of extracellular Ca2+ were significantly reduced by 50 μM 2-aminoethoxydiphenyl borate (2-APB), a blocker of IP3-induced Ca2+ release[31] (Figure2D), whereas contractions by 50 mM K+ were not affected (Figure2E).

Figure 2

Ca2+from intracellular Ca2+stores does not contribute to K+contractions. Effects of 15 μM ryanodine on baseline isometric tension (A), and on force evoked by 20 mM caffeine (B) or 50 mM K+ (C). Results show mean ± s.e.m, n = 4. *, ***: P<0.05, 0.001, control versus ryanodine. Effects of 50 μM 2-APB on contraction induced by 2 μM PE in 0Ca solution (D) or contraction induced by 50 mM K+ (E). Results show mean ± s.e.m, n = 4. **, ***: P<0.01, 0.001, control versus 2-APB. (F) Dose–response curve for inhibition by nifedipine of the contractions evoked by 50 mM K+ (n = 4).

Moreover, K+ in Ca2+-free KR (0Ca) or in the presence of 3 μM nifedipine, an inhibitor of L-type Ca2+ channels, failed to elicit tension, and addition of nifedipine (3 to 300 nM) to segments constricted with 50 mM K+ caused complete relaxation (Emax 107 ± 3%, logEC50 -8.12 ± 0.12, n = 4, Figure2F). Finally, inhibition of SERCA and emptying the intracellular Ca2+ stores with 1 μM cyclopiazonic acid (CPA) did not affect the contraction by 50 mM K+.

These results indicated that SR Ca2+ is not involved in K+-evoked contractions and that fast and slow force components evoked by high K+ were both initiated and sustained by Ca2+ influx via VSMC L-type Ca2+ channels only.

Relationship between force and Ca2+ influx

Temporal relationships between intracellular Ca2+ and isometric force were explored using the cumulative protocol. For K+ elevations from 15 to 20, from 20 to 25 and from 25 to 30 mM K+, there was a strict temporal relationship between Ca2+ and force (Figure3). Again, there were tonic and phasic contractions (cf Figure1D and E), though at slightly higher K+ concentrations (20–30 mM K+). They coincided with phasic Ca2+ spikes on top of a tonic rise of Ca2+ (Figure3). Both Ca2+ and force spikes faded away as time progressed (15 to 20 mM K+), displayed higher frequency at the subsequent step (25 mM K+) and disappeared at holding potentials above 30 mM K+. From 35 up to 124 mM K+ the temporal relationships between Ca2+ (transient peak tapering off to lower plateau) and force (biphasic increase) were not clear and during these depolarizations Ca2+ decreased whereas force increased (arrows in Figure3).

Figure 3

Depolarisation with elevated K+induces force and intracellular Ca2+ signals. Representative example (n = 3) of intracellular Ca2+ (ratio 340/380, RU, blue) and isometric force (red) of an aortic segment upon gradual elevation of external K+ from 5.9 mM to the values indicated on top of the figure. Both signals are shown in the right panel on an extended time scale for transitions from 15 to 20, from 20 to 25 and from 25 to 30. Black arrows indicate decrease of Cai2+ with accompanying increase of force.

The deviations between Ca2+ and force above 30 mM K+ were studied in greater detail by depolarizing the segments from 5.9 mM K+ to 50 or 124 mM K+. The initial, fast contraction was accompanied by a fast rise in Ca2+ (Figure4). Amplitude and velocity of the fast Ca2+ (7.2 ± 1.5 s) and force (7.7 ±1.2 s) components were greater at 124 mM K+ as compared with 50 mM K+ (16.8 ± 3.7 s and 14 ± 3 s respectively). After reaching a maximum, Ca2+ declined faster (50 ± 6 s versus 137 ± 24 s, P<0.01) and to a lower level at 124 mM K+ than at 50 mM K+, and the slow force increase during the plateau phase was slightly smaller at 124 mM K+.

Figure 4

Temporal relationships between force and intracellular Ca2+ signals at elevated K+. Intracellular Ca2+ (ratio 340/380, RU, blue, A) and force (red, C) signals upon depolarization from 5.9 mM K+ to 50 or 124 mM K+. Ca2+ and force signals consisted of fast and slow components with amplitudes shown in B and D. Results show mean ± s.e.m, n = 6. *, **, ***: P<0.05, 0.01, 0.001 for 124 versus 50 mM K+.

These results indicate that at 50 or 124 mM K+ the slow contraction was actually accompanied by a decline of Ca2+, but that there was a good temporal relationship between intracellular Ca2+ and force development immediately after the depolarization.

Experimental dissection of the Ca2+ and force components

At 5.9 mM K+, removal of extracellular Ca2+ (0Ca) decreased basal intracellular Ca2+ and force from 0.91 ± 0.03 to 0.81 ± 0.02 RU (p<0.005, n = 6) and from 0.52 ± 0.02 to 0.40 ± 0.05 mN/mm (p<0.05, n = 6), indicating baseline Ca2+ influx via Ca2+ channels in normal conditions. Depolarizing the segments with 124 mM K+ in 0Ca abrogated Ca2+ influx via L-type Ca2+ channels and neither contraction nor Ca2+ influx was observed. Because in the absence of extracellular Ca2+ L-type Ca2+ channels display normal gating currents[32], subsequent addition of external Ca2+ can evoke Ca2+ influx and contraction only if a subpopulation of L-type Ca2+ channels is not completely inactivated during the preceding depolarization in 0Ca. Indeed, re-addition of Ca2+ to 0Ca caused intracellular Ca2+ and force to increase (Figure5B). Contrary to the control situation (Figure5A), intracellular Ca2+ did not decline during the contraction plateau in the Ca2+ re-addition experiments. As a consequence, a clear temporal relationship between the slow Ca2+ and force signals was observed (Figure5B) and the force and Ca2+ signals could now be dissected in parallel fast and slow components.

Figure 5

Depolarization in the absence of external Ca2+ eliminates the fast, transient Ca i 2+ and force signals. Intracellular Ca2+ (ratio 340/380, blue) and force (red) upon depolarization from 5.9 mM K+ to 124 mM K+ in the presence of 2.5 mM external Ca2+ (124 mM K+, A) or after re-addition of 3.5 mM Ca2+ to 0Ca (124 K+/0-3.5Ca, B). Pair-wise subtraction of 124 mM K+/0-3.5Ca from 124 mM K+ signals yielded the differential curves for Ca2+ (C) and force (D). Results show mean ± s.e.m, n = 4.

The fast Ca2+ and force components that were eliminated in the Ca2+ re-addition experiments, could be visualized by pair-wise subtracting Ca2+ and force traces from control traces (Figure5C, D). The differential Ca2+ and force signals displayed a similar time-dependency (time constants respectively 15 ± 2 s and 9 ± 2 s for rise, and 57 ± 4 s and 54 ± 4 s for fall). Therefore, Figures4 and5 illustrate the strict temporal relationships between fast and slow Ca2+ and force signals upon depolarization: the fast transient Ca2+ increase during depolarization initiates fast force development, whereas a simultaneously activated slower influx of Ca2+ is responsible for sustained force development during the plateau phase.

Is L-;type Ca2+ window current responsible for the slow contraction phase?

An important electrophysiological property of L-type Ca2+ channels is that in the voltage range where activation and inactivation curves overlap, they allow a continuous, time-independent Ca2+ influx, the so-called window L-type Ca2+ channel current[24, 26]. If this current is responsible for the slow contraction phase following addition of external Ca2+ to segments depolarized in 0Ca, then force should display a bell-shaped concentration-response relationship. Figure6 shows the contractions evoked by re-introduction of Ca2+ to 0Ca at different K+ concentrations. After 200 s the slow component showed a linear rather than exponential increase with time. Force measured at 600 s was maximal at 50 mM K+ and declined at higher K+ concentrations (Figure6A).

Figure 6

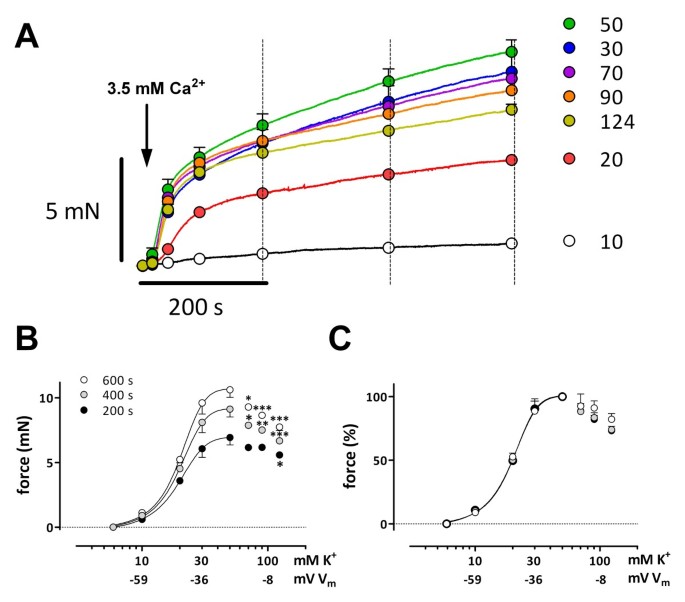

K+-dependent development of window contraction. Isometric contractions induced by addition of 3.5 mM Ca2+ to 0Ca containing 10 up to 124 mM K+ (A). Absolute (B) and relative (50 mM K+ set to 100%, C) [K+]-force curves were determined at 200, 400 and 600 s (see dotted lines in A), were bell-shaped and could only be fitted up to 50 mM K+ (B, C). Results show mean ± s.e.m, n = 6. *, **, ***: P<0.05, 0.01, 0.001 versus 50 mM K+.

[K+]-contraction curves were determined after 200, 400 and 600 s (Figure6B and C). At these time intervals, the [K+]-contraction curve indeed became bell-shaped. The bell-shape and the complete inhibition with the L-type Ca2+ channel blocker, nifedipine (data not shown) are typical characteristics of the window L-type Ca2+ current. The EC50 for K+ was time-independent and was respectively 20.9 ± 0.4 mM, 20.4 ± 0.2 mM and 20.5 ± 0.2 mM (n = 6). The continuous increase of force with time is presumably due to Ca2+ sensitization as intracellular Ca2+ reached steady-state after 200 s (Figure 5). Further evidence for Ca2+ sensitization was provided by Rho kinase inhibition with Y-27632 (1 and 3 μM). Y-27632 attenuated depolarization-induced contractions, but inhibition of Ca2+ sensitization emphasized the bell shape of the [K+]-contraction curve even more. This suggests that the decrease of force at 90 and 124 mM K+ was not due to a reduction in sensitivity to Ca2+, but was proportional to the window influx of Ca2+ via L-type Ca2+ channels (Figure7). Similar results were obtained with HA 1077 (5 μM, not shown).

Figure 7

Effects of Rho kinase inhibition with Y-27632 on window contractions. A: “Steady-state” isometric contractions induced by depolarizations with cumulative K+ concentrations in the absence (control) and in the presence of 1 and 3 μM Y-27632. In B, force was normalized with values at 50 mM K+ as 100%. Results show mean ± s.e.m, n = 4. *, **, ***: P<0.05, 0.01, 0.001 versus control.

Modulation of L-type window Ca2+ influx

Changes of Vm of the VSMCs or changes of the voltage-dependent parameters of L-type Ca2+ channel gating (activation or inactivation) are expected to affect Ca2+ influx and contraction of the segments. Segments could be hyperpolarized from −60 mV to the K+ equilibrium potential (VK) of −86 mV at 5.9 mM K+ with levcromakalim (200 nM), an opener of ATP-dependent K+ channels (seeAdditional file 1, Figure1). The L-type Ca2+ channel activation curve can be shifted to hyperpolarized potentials with BAY K8644 (30 nM), an activator of L-type Ca2+ channels[30, 33, 34]. When segments were subjected to increasing K+ concentrations in the presence of levcromakalim, BAY K8644, or their combination (Figure8A and B), levcromakalim shifted the curve to higher K+ concentrations (+5.93 ± 0.87 mM), whereas BAY K8644 caused a shift to lower K+ concentrations (-7.98 ± 1.09 mM). Both effects were fully additive, indicating independent effects of Vm (levcromakalim) and L-type Ca2+ channel gating (BAY K8644) on window contractions.

Figure 8

Stimulation and inhibition of window contraction. A: Representative example of isometric contractions of a segment depolarized with cumulative K+ concentrations in the absence (C, black) and presence of 30 nM BAY K8644 (B, blue), 200 nM levcromakalim (L, green), or their combination (B + L, red). B: “Steady-state” force at each step was plotted as function of [K+] with values at 50 mM K+ as 100%. Results show mean ± s.e.m, n = 4. *, ***: P<0.05, 0.001 versus control. C: Change of basal tension (Δ force in mN) for repolarization and depolarization of Vm by changing extracellular K+ to attain Vm within the physiological range for non-stimulated VSMCs (K+ from 5.9 mM to 2 (white) or 10 (grey) or 15 (black) mM) in control conditions (C) and in the presence of 30 nM BAY K8644 (B). Instead of the actual K+ concentration, the estimated Vm of the VSMCs is indicated: -77 mV for 2 mM, -66 mV for 5.9 mM, (not shown), -59 mV for 10 mM and −51 mV for 15 mM K+. Results show mean ± s.e.m, n = 5. *, **, ***: P<0.05, 0.01, 0.001 versus 5.9 mM K+.

At normal extracellular K+, levcromakalim caused a glibenclamide (inhibitor of ATP-sensitive K+ channels)-sensitive decline of intracellular Ca2+ (−0.042 ± 0.012 RU, n = 3) and baseline tension (−0.56 ± 0.28 mN, n = 4), whereas BAY K8644 raised resting intracellular Ca2+ (+0.016 ± 0.008 RU) and force (+1.77 ± 0.51 mN, n = 4). The BAY effect could be reversed by addition of levcromakalim or nifedipine (data not shown). To illustrate the physiological importance of the window Ca2+ influx for basal contraction of mouse aortic segments, the external K+ concentration was changed to obtain depolarizations or repolarizations within the physiological range of Vm for VSMCs (Figure8C). Changes of the extracellular K+ between 2 and 15 mM and Vm between −77 and −51 mV caused significant alterations of basal force in control, which could be amplified by adding 30 nM BAY K8644 or removed by adding 200 nM levcromakalim (data not shown). These data provide further evidence for the importance of window Ca2+ influx within the physiological range of Vm or K+ concentrations[35, 36].

Discussion and conclusions

The present study showed that the main determinant of depolarization-induced contractions of the mouse aorta was the influx of extracellular Ca2+ via L-type Ca2+ channels. Thereby, both Ca2+ influx and contraction depended on the amplitude of depolarization (reflected by the increase of external K+) and on the resting potential of the VSMC (concentration of external K+ at the start of depolarization). At resting membrane potentials, elevation of extracellular K+ above 10–20 mM caused biphasic contractions and Ca2+ signals. Although the relationships between intracellular Ca2+ and force appeared to be complex and sometimes non-linear (slow component), we demonstrated that the fast, phasic force component was related to a transient Ca2+ influx, presumably via a population of L-type Ca2+ channels which activated and completely inactivated during the depolarization. On the other hand, the slow, tonic force component displayed a bell-shaped voltage (K+)-dependence and could be attributed to voltage-dependent, “steady state” Ca2+ influx via a population of L-type Ca2+ channels. These channels did not completely inactivate during sustained depolarization and gave rise to a window contraction. In addition to the Ca2+ influx via both populations of L-type Ca2+ channels, a time-dependent Ca2+ sensitization contributed to the depolarization-induced contractions of the mouse aorta.

Depolarization-induced contraction is due to activation of L-type Ca2+ channels and not to Ca2+ release from the SR

As expected[37], contractions induced by high K+ were mainly due to influx of extracellular Ca2+ via L-type Ca2+ channels in the mouse aorta. Firstly, depolarization in the absence of external Ca2+ did not elicit intracellular Ca2+ signals or contractions. Secondly, selective L-type Ca2+ channel blockade (3 μM nifedipine) completely inhibited K+-induced contractions. Thirdly, BAY K8644, an agonist of L-type Ca2+ channels, increased the K+-sensitivity of the contractions. Finally, although intracellular Ca2+ release or Ca2+-induced Ca2+ release through activation of IP3 or ryanodine receptors or Ca2+ re-uptake to the SR have been shown to contribute to K+-induced contractions[16, 37, 38], this was not observed in mouse aorta segments (see also[24]). Hence, intracellular Ca2+ release did not account for the biphasic pattern of high K+-induced force and Cai2+ and either phase was solely initiated by L-type Ca2+ influx.

Relationships between fast and slow contraction phases and Ca2+ influx

The contraction elicited by depolarization of VSMCs has been studied extensively[39], but has never been directly correlated with the known electrophysiological properties of L-type Ca2+ channels. L-type Ca2+ currents in isolated SMCs of various tissues and species display a bell-shaped voltage-dependence with maximal currents at 0 to +20 mV[1, 2, 14, 22, 23, 25, 40]. Activation (opening) of L-type Ca2+ channels starts at −50 to −40 mV with half-maximal activation at −30 mV[25, 41], whereas inactivation starts at −60 mV, is half maximal at about −30 mV and complete at 0 mV[23, 25, 41, 42]. As a consequence, at voltages between current activation (around −45 mV, 20 to 25 mM K+) and complete current inactivation (around 0 mV, 124 mM K+), two populations of L-type Ca2+ channels are expected to contribute to Ca2+ influx and contraction. One population of channels will activate and completely inactivate during the depolarization leading to a transient Ca2+ influx and concomitant contraction (see Figure5C and D). This contraction corresponds with the fast phase of contraction as described in Figure1C, where it was elicited by step depolarizations of Vm by sudden increase of K+ from 5.9 mM to values above 20 mM. The physiological importance of these events in VSMCs can be questioned. However, in some experiments (Figure3), fast time- and voltage-dependent intracellular Ca2+ and force spikes appeared on top of a slow rise in tone or Ca2+ at 15 to 20 mM K+ (−50 to −44 mV), which is near the activation voltage of L-type Ca2+ channels and within the physiological range of VSMCs Vm. As their spiking frequency increased with the amplitude of the depolarization step, fusing to a single fast component at 30 and 50 mM K+ (−36 and −24 mV) similar to the fast component in the step protocol, these events might be related with activation and complete inactivation of L-type Ca2+ channels. Because they occur at physiological Vm of VSMCs, they may have physiological importance. They may be related with the persistent calcium sparklets that are increased in hypertension[43], with artery vasospasm[44] or other pathophysiological processes.

However, at all K+ concentrations studied, a variable population of channels will not completely inactivate and will permit “time-independent” Ca2+ influx via the so-called voltage window[24]. Hence, every depolarization positive to −45 mV (± 20 mM K+) should activate a time-independent, non-inactivating Ca2+ influx. Following removal of the fast force component by depolarization in the absence of external Ca2+ and, then, re-adding Ca2+ (Figures5 and6) we demonstrated that this “window” contraction showed a close temporal relationship with the increase of intracellular Ca2+ via window L-type Ca2+ influx. The electrophysiological characteristics of the L-type Ca2+ channel window, i.e. maximal Ca2+ influx at −30 mV (40 to 50 mM K+) and a bell-shaped voltage-dependence are paralleled by a tonic force component which increased with [K+ up to 50 or 70 mM (Vm = −20 to −30 mV), but decreased again above 70 mM K+, leading to a bell-shaped [K+-contraction curve. Its voltage range is bounded at negative potentials by channel activation and at more positive potentials by channel inactivation. This agrees with the K + -dependence of the slow force component described in Figure1C and Figure6.

Manipulation of the window Ca2+ influx and contraction

Our experiments predict that basal force by aortic segments will depend on Vm and that changes of Vm within the voltage range of the L-type Ca2+ channel window will stimulate or inhibit Ca2+ influx via L-type Ca2+ channels and the concomitant contraction. Since removal of extracellular Ca2+ led to a decline of intracellular Ca2+ and basal tension in the VSMC of the mouse aorta, a “window” Ca2+ influx appeared to be operative and functional at resting potentials, which are between −40 to −60 mV[45, 46]. As a consequence, a small decrease (2 mM K+, repolarization) or increase (10 mM K+, depolarization) of external K+ modulates basal tension of the mouse aortic segments, probably via closing and opening of L-type Ca2+ channels because the effects of K+ changes are emphasized by applying BAY K8644 (Figure8C).

Hyperpolarization of Vm, as with EDHF[35, 36, 4749] or with KATP channel openers such as levcromakalim (present study) or cromakalim[45], or with reduction of extracellular K+ might pull Vm out of the window, thereby decreasing L-type Ca2+ influx, inducing vasodilatation, elevated arterial compliance[50], and hypotension. For example, in the present study, levcromakalim, which causes hyperpolarization to VK of −85 mV at 5.9 mM K+[47], caused a decline of resting intracellular Ca2+ and baseline tension, and shifted the [K+-contraction curve to higher K+ concentrations by +6 mM K+ at midpoint.

On the other hand, it is expected that factors causing depolarization of the membrane potential such as intravascular pressure[51], hypertension[2, 52], a deficient NO release as in eNOS−/− mice[45], the absence of TRPC6 channels[46] might force the VSMC Vm in the L-type Ca2+ channel window leading to increased window L-type Ca2+ influx, basal constriction, decreased arterial compliance, increased myogenic responses and hypertension.

Therefore, results of the present study indicate that the position of the L-type Ca2+ channel window along the voltage axis may have profound effects on basal and stimulated Ca2+ influx in VSMC, but also predict that shifts of the activation or inactivation curves of L-type Ca2+ channels affect vasoconstriction and/or dilatation. For example, BAY K8644, which shifts the L-type Ca2+ channel activation curve to hyperpolarized potentials[33, 34], caused an increase of basal Ca2+ influx and tone (Figure8, see also[30]). Furthermore, Bay K8644 shifted the [K+-response curve to lower K+ concentrations by about 8 mM at midpoint, independent of the presence of levcromakalim, indicating that both the position of the window on the voltage axis and the resting membrane potential determine the window contraction.

Finally, because a number of alternatively spliced isoforms of the calcium channel gene protein exist, the L-type Ca2+ channel population is not homogeneous. The isoforms display differences in tissue distribution, physiology, pharmacology and disease-related up- and/or down-regulation[14, 41, 42, 53], but also show altered voltage-dependent activation and inactivation, thereby influencing window currents[54]. Hence, changes in the expression of the channel isoforms within the vascular tree[55] as can occur in hypertension[53] or atherosclerosis[14] may affect the position of the L-type Ca2+ channel window along the voltage axis with effects on basal and stimulated Ca2+ influx and blood vessel tone. Moreover, different splice variants can be expressed within a single blood vessel type and depending on the dominance of one or more isoforms, this may determine the electrophysiological properties of the Ca2+ channels[42, 53, 55, 56].

K+-induced Ca2+ sensitization

The “window” intracellular Ca2+ signal elicited by depolarization reached a steady-state at 200 s, whereas tension increased further at later time intervals. This pointed to a time-dependent and Ca2+-dependent Ca2+ sensitization, but after normalization of the contractile responses, there was no shift of the curves with time. Hence, the time-dependent Ca2+ sensitization was proportional to intracellular Ca2+, which is mainly determined by the extent of “steady-state” Ca2+ influx at each [K+. This is in line with recent data indicating that the depolarization-induced Ca2+ sensitization depends on Ca2+ entry[15, 1821] and with the results obtained with the Rho kinase inhibitors Y-27632 and HA 1077. Rho-kinase inhibition did not eliminate the bell-shape of the [K+-force curves, but emphasized its voltage-dependence. Therefore, both continuous Ca2+ influx and Ca2+-dependent Ca2+ sensitization are necessary to maintain contraction, whereby Ca2+ influx occurs independently from Ca2+ sensitization, but not vice versa.

Limitations of the study

Voltage-clamp of multicellular aortic segments with electrophysiological techniques is impossible with current methods because of temporal and spatial voltage heterogeneity. Therefore, we clamped the aortic rings with extracellular K+ although the resting Vm is not solely determined by the K+ equilibrium potential (VK), especially at low K+[51] (seeAdditional file 1). Taking into account that levcromakalim hyperpolarized Vm of rat mesenteric arteries from −58 to −82 mV (hyperpolarization to VK)[47] and that in the present study levcromakalim shifted the [K+-force curve by +5.9 mM K+ at midpoint, Vm at normal K+ of 5.9 mM was calculated to be 19 mV less polarized than VK (−66 mV instead of the Nernstian −85 mV); this is in good agreement with resting Vm of arterial SMCs mentioned in the literature[28, 47] (seeAdditional file 1). At 20 and 50 mM K+, the difference between Vm and VK further diminished from 19 to 7 and 3 mV. Therefore, clamping the segments with K+ was, in our hands, a good technique to restrain the resting Vm of the SMCs.


Besides a phasic, fast transient Ca2+ and force component, depolarization of aortic segments of C57Bl6 mice with elevated extracellular K+ causes a tonic, slow Ca2+ and force component. Both components reflect the electrophysiological properties of L-type Ca2+ channels. The tonic force component could be attributed to window L-type Ca2+ influx, plays a prominent role in maintaining basal and stimulated intracellular Ca2+ and tension in mouse aorta, and together with Rho-kinase-mediated Ca2+ sensitizing may be of great importance for the (patho)physiology of conduit blood vessels. Hence, any modulation of L-type Ca2+ influx in VSMC is expected to affect endothelium-dependent and -independent Ca2+ mobilization and related vasomotor responses of blood vessels or arterial compliance. Window L-type Ca2+ influx may underlie the reduced relaxing efficacy of NO in mouse aorta when the contraction is elicited mainly via L-type Ca2+ influx[30]. Therefore, we conclude that every intervention (short or long term) that changes the resting Vm of the VSMC or the expression/properties of the population of L-type Ca2+ channels, favoring one or another isoform, might have implications for the window Ca2+ current, influx and contraction, for the sensitivity to L-type Ca2+ channel blockers and NO, for the arterial compliance and for the effects of hypertension on the cardiovascular system.


Aortic segments

The studies were approved by the Ethical Committee of the University of Antwerp, and the investigations conform to the Guide for the Care and Use of Laboratory Animals published by the US National Institutes of Health (NIH Publication No. 85–23, revised 1996). C57Bl6 mice (n = 72, food and water ad libitum, 12/12 light–dark cycle) were used at the age of 4 to 7 months. Animals were euthanized under pentobarbital anesthesia (sodium pentobarbital, 75 mg kg-1, i.p.). The thoracic aorta was carefully removed, stripped of adherent tissue and dissected systematically. Starting at the diaphragm, the ascending thoracic aorta was cut in segments of 2 mm width (5 to 6 segments). Vessels were immersed in Krebs Ringer solution (KR 37°C, 95% O2/5% CO2, pH 7.4) with (in mM): NaCl 118, KCl 4.7, CaCl2 2.5, KH2PO4 1.2, MgSO4 1.2, NaHCO3 25, CaEDTA 0.025, and glucose 11.1. When Ca2+ was omitted from the KR, 1 mM EGTA was added (further named 0Ca) and, hence, to restore 2.5 mM free Ca2+, 3.5 mM Ca2+ was added to 0Ca (further named 0–3.5Ca) from a 1.75 M CaCl2 stock. High K+- solutions were prepared by replacing NaCl with equimolar KCl.

To measure resting membrane potentials (Vm) inverted (inside out) endothelium-denuded segments were mounted in the wire myograph, incubated with HEPES-buffered bathing solution (5.4 mM KCl, 141 mM NaCl, 10 mM HEPES, 0.8 mM MgCl2, 10 mM glucose, 1.8 mM CaCl2, 1 μM amlodipine, pH = 7.4 at 37°C with 1 M NaOH) and impaled with glass intracellular microelectrodes (filled with 2 mM KCl and tip resistances between 65 and 90 MΩ). Vm was measured with a HEKA EPC9 amplifier (HEKA Electroniks, Germany) in the zero current clamp mode and recorded on paper (Gould pen writer). Only measurements of Vm starting with a sharp decrease of Vm upon impalement and a sharp return to approximately 0 mV upon withdrawal of the electrode were considered.

To simulate voltage clamp protocols used in electrophysiological studies, extracellular K+ was used to clamp the aortic segments at certain estimated potentials. Depolarizing voltage steps were mimicked by graded elevation of extracellular K+ starting from and returning to a normal resting potential at 5.9 mM K+ (repetitive depolarization protocol). The holding potential from which voltage steps would be applied was mimicked by holding the segments at each K+ concentration before a subsequent challenge with higher K+ (cumulative depolarization protocol).

Isometric tension measurements

Aortic segments were mounted in 10 ml organ baths, tension (mN) was measured isometrically with a Statham UC2 force transducer (Gould) connected to a data acquisition system (Powerlab 8/30, ADInstruments, Spechbach, Germany) as described[30]. Segments were gradually stretched until a stable loading tension of 16 mN, the optimal preload to attain maximal force development by 50 or 124 mM K+. Isometric force was reported in mN. Nitric oxide (NO) formation was inhibited with a combination of 300 μM NΩ-nitro-L-arginine methyl ester (L-NAME) and 300 μM NΩ-nitro-L-arginine (L-NNA) and to avoid any vasomotor interference due to prostanoids, 10 μM indomethacin was present.

Combined assay of isometric tension and VSMC Cai2+

Segments were mounted in a wire (40 μm) myograph above an inverted microscope (Axiovert 200, Carl Zeiss, Zaventem, Belgium) after removal of the endothelium by rubbing their interior with a braided silk wax to avoid interference by endothelial Ca2+ signals. Segments were loaded for 120 minutes with aerated (95% O2/5% CO2, pH 7.4) KR containing 10 μM Fura-2 AM, 1 mg/ml bovine serum albumin and 0.02% Pluronic at room temperature. Then, temperature was raised to 37°C and the segment was set to its normalized diameter[30]. The single emission (510 nm) ratio at dual excitation (340 and 380 nm) was used as a relative measure of free Cai2+ (relative units, RU) after subtraction of background emission values, which were determined by adding 2 mM MnCl2 at the end of each experiment. Contractile force was measured simultaneously and reported in mN mm-1[30].

Data analysis

All results are expressed as mean ± sem; n represents the number of mice. Time-force curves were fitted with a bi-exponential function revealing amplitudes and time constants of first (fast) and second (slow) components. Concentration-response curves were fitted with sigmoidal concentration-response equations with variable slope, which revealed maximal responses (Emax) and the negative logarithm of the concentration resulting in 50% of the maximal effect (pEC50) for each vessel segment. Two-way ANOVA with Bonferroni post-test (concentration-response curves) and paired or unpaired t-test (GraphPad Prism, version 5, GraphPad Software, San Diego California USA) were used to compare means of the different experimental groups. A 5% level of significance was selected.


Sodium pentobarbital (Nembutal®) was obtained from Sanofi (Brussels, Belgium), indomethacin from CERTA (Belgium), L-NNA, L-NAME, nifedipine, ryanodine, 2-APB, HA-1077 dihydrochloride from Sigma (Bornem, Belgium), Fura 2-AM from Molecular Probes (Invitrogen, Merelbeke, Belgium), (±) BAY K8644, levcromakalim, glibenclamide from TOCRIS (Bristol, United Kingdom), Y-27632 dihydrochloride from Abcam Biochemicals (Cambridge, UK).





Vascular smooth muscle cell




2-aminoethoxydiphenyl borate


NΩ-nitro-L-arginine methyl ester




Nitric oxide


Sarco-endoplasmic reticulum calcium ATPase


Sarcoplasmic reticulum


Endothelial nitric oxide synthase


Equilibrium potential for K+ ions


Membrane potential.
